Digital Yacht

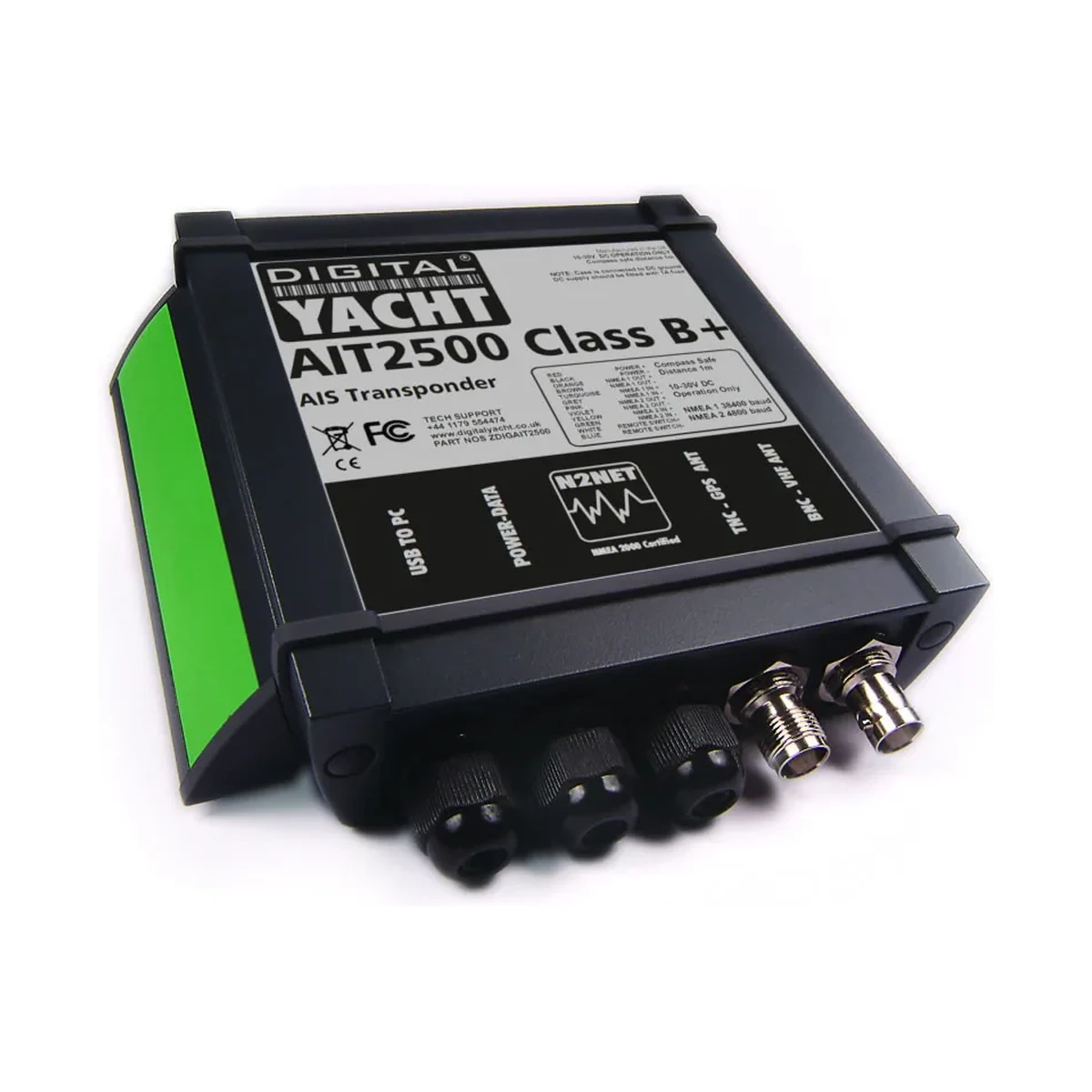

AIT2500
“The AIT2500 is a full function Class B+ SOTDMA AIS transponder with NMEA 0183, NMEA 2000 and USB data outputs. It is supplied with a GPS antenna.”
- Brand
- Digital Yacht
- Category
- Marine Network & Interface
- Manufacturer
- Digital Yacht website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Weight | 2000 g |
|---|---|
| Dimensions | 155 × 130 × 37 mm |
Overview
About this product
KEY FEATURES
Digital Yacht have introduced a new range of Class B+ AIS transponders. Class B+, a new standard, utilises SOTDMA format transmissions which offer a 5W power output (2.5x more powerful than a regular Class B), a guaranteed time slot for transmission in busy traffic areas and faster update rates depending upon the speed of the vessel. It’s ideal for ocean sailors requiring the best possible performance and future proof satellite tracking applications, fast power boats and smaller non-mandated commercial vessels. It still inter-operates with existing Class B and Class A systems.
The AIT2500 is a full function SOTDMA AIS transponder with NMEA 0183, NMEA 2000 and USB data outputs. It is supplied with a GPS antenna and requires connection to a VHF antenna or suitable VHF-AIS antenna splitter.
The AIT2500 the option of an AIS SART alarm which is great for use with personal AIS MOB devices.
SPECIFICATIONS
- New Class B+ 5W transponder with GPS/GLONASS positioning
- Multiple NMEA 0183 in/out and multiplex capability
- NMEA 2000 connectivity
- USB connectivity for PC/MAC
- Remote TX silence switch option
- Supplied with GPS antenna
- Options include VHF-AIS antenna splitter, wireless interface (WLN10SM) and AIS SART Alarm (AIS Lifeguard)
NOTE ON SOTDMA TECHNOLOGY
Class B+ is a new generation of AIS functionality based on SOTDMA (self organised TMDA) messaging rather than the simpler CSTDMA (carrier sense TDMA). It guarantees your AIS transmission will get a time slot, even in areas of very high traffic density. It also specifies a 5W transmission power (compared with 2W for Class B) and a transmission rate that increases as the vessel moves faster. With regular Class B protocol, the transmission rate is fixed at every 30 seconds when the vessel is moving. It is ideal for ocean sailors requiring the best possible performance and future proof satellite tracking applications, fast power boats and smaller non-mandated commercial vessels. Please click here if you want to learn more about Class B+
Questions
Frequently asked questions
How big and heavy is the AIT2500?
The AIT2500 measures 155 x 130 x 37 mm and weighs 2000 g (2 kg).
