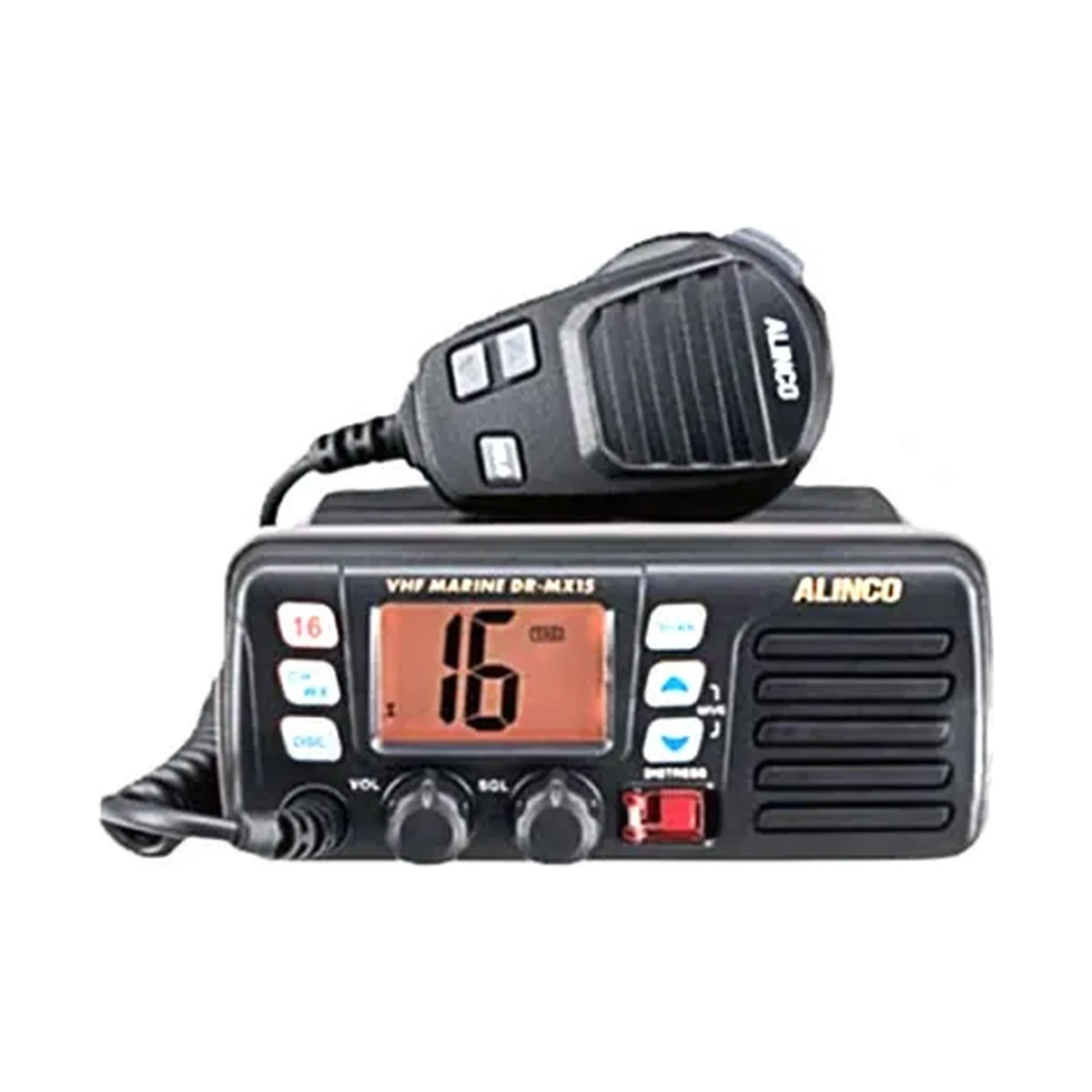

Alinco DR MX-15

SPECIFICATIONS

Frequency range Tx : 156.025-157.425MHz Rx : 156.050-163.275MHz
Frequency stability ±10ppm
Emission type FM (16K0G3E), DSC(16K0G2B)
Antenna impedance 50 Ω
Rated voltage 13.8V ±15%
Current Consumption 1.5A (Max audio output) 5.5A (TX 25W)/ 1.5A (TX 1W)
Operating temperature －20～ +60℃
Ingress protection IPX7
Dimensions 15,3 x 6,7 x 15,2 cm approx.
Weight 742G ( With Microphone)

Categories: Marine, Mobile

Description

TRANSMITTER

RF Output Power 25W/1W
Modulation Type Variable Reactance
Variable Reactance >70dB
Frequency deviation ± 5KHz

RECEIVER

Circuit Double-Conversion Superheterodyne
Intermediate Frequencies 1st: 21.7 MHz 2nd: 450 kHz
Sensitivity 0.22µV (12 dB SINAD)
Adjacent Channel Selectivity 70 dB
Intermodulation response 70 dB
Audio Output (External speaker) 4.5W ( 4Ω10 %THD)
