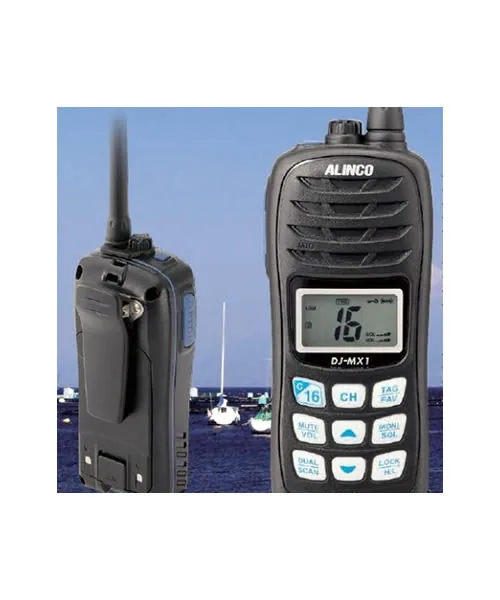

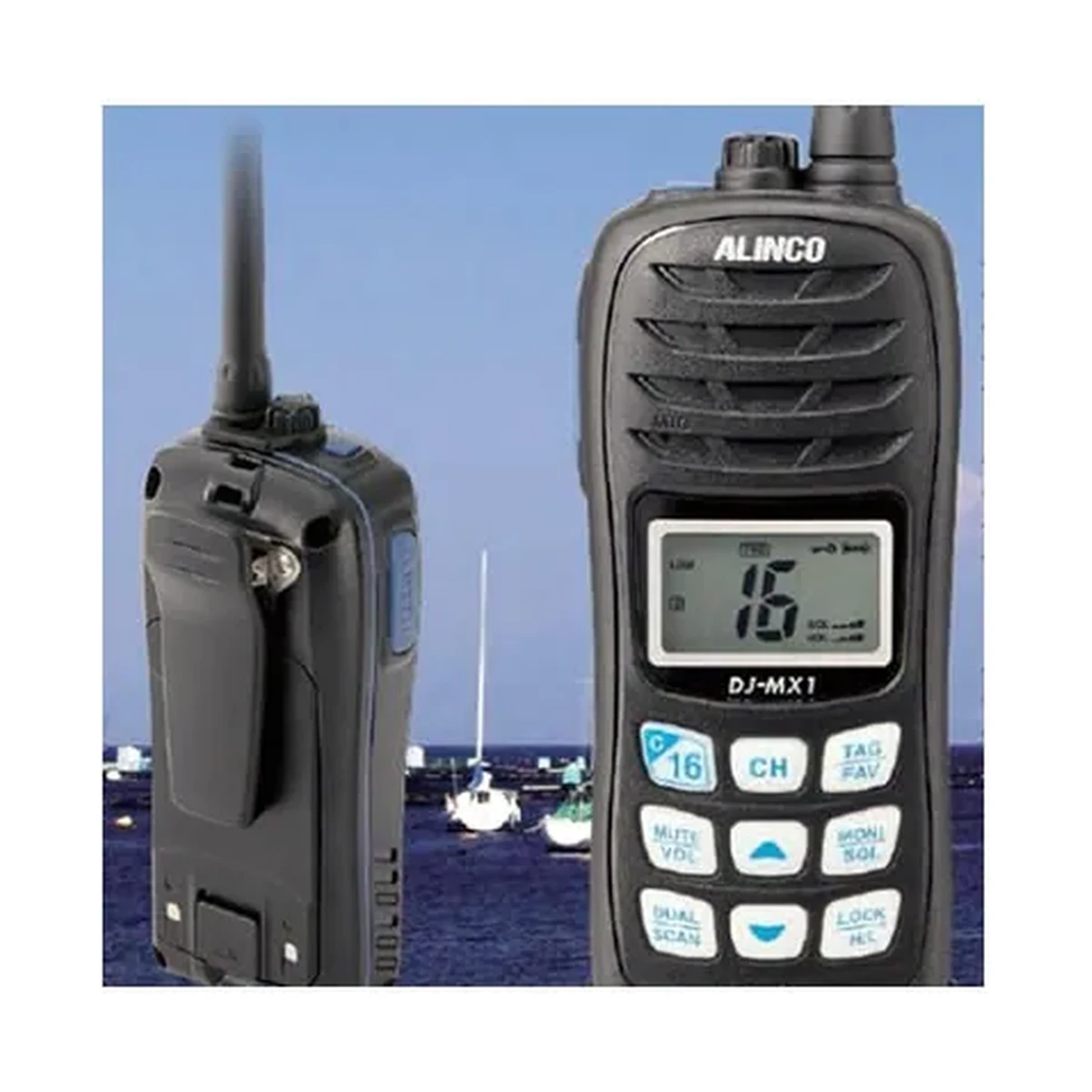

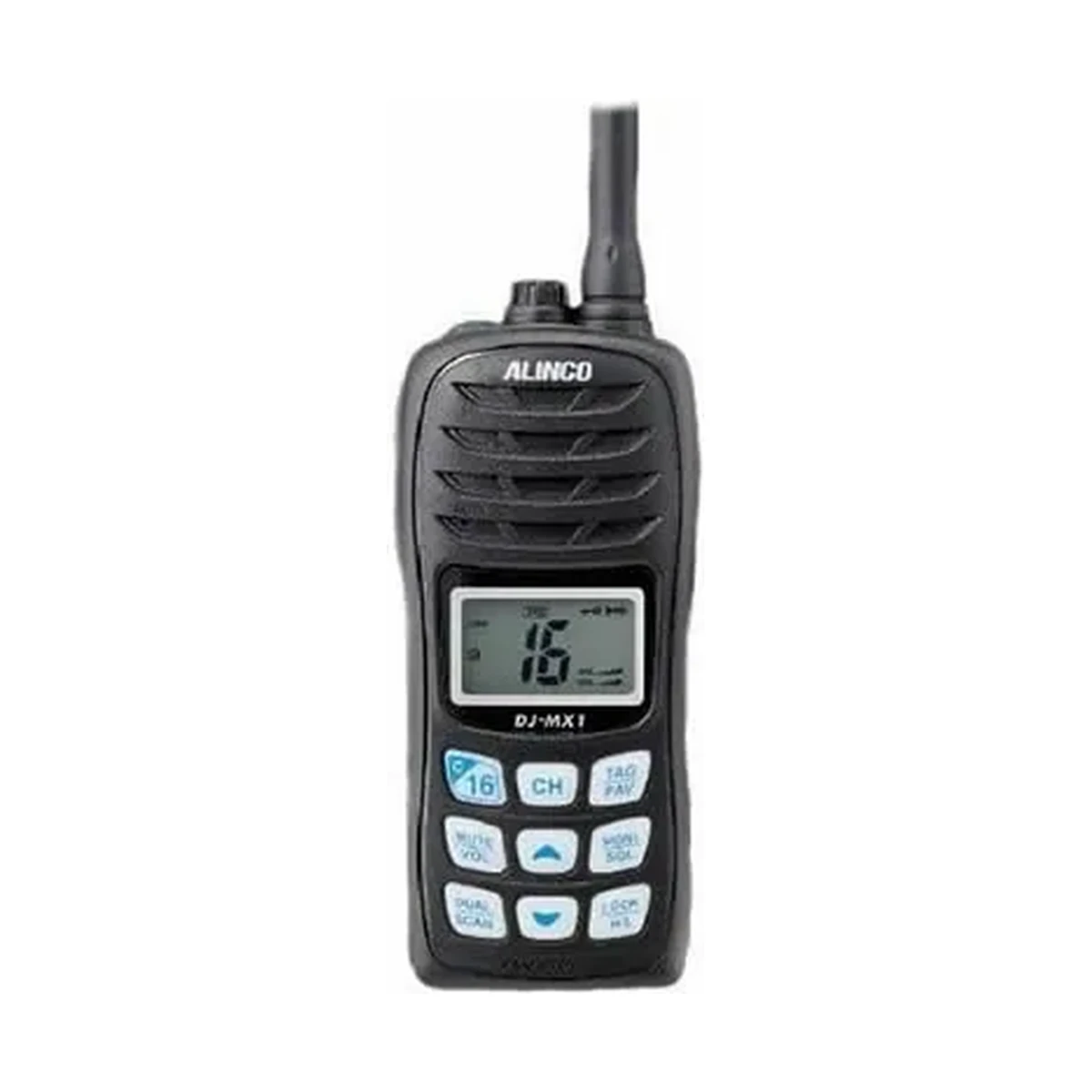

Alinco
SPECIFICATIONS Frequency range : Tx : 156.025-157.425MHz Rx : 156.050-163.275MHz Frequency stability : ±10ppm Antenna impedance : FM (16K0G3E) Rated voltage : 50 Ω Current Consumption : 0.35A (Max audio output) 1.5A (TX / 5W) / 0.9A (TX / 1W) (Battery life up…
Technical
| Frequency range | Tx: 156.025-157.425MHz / Rx: 156.050-163.275MHz |
|---|---|
| Frequency stability | ±10ppm |
| Emission type | FM (16K0G3E) |
| Antenna impedance | 50 Ω |
| Rated voltage | 7.2V (Battery) |
| Current Consumption | 0.35A (Max audio output), 1.5A (TX/5W) / 0.9A (TX/1W) |
| Operating temperature | -20 to +60C |
| Ingress protection | IPX7 |
| Dimensions (WxHxD) | 63mm x 138mm x 43mm approx. |
| Weight | 288g with battery, antenna and clip |
| RF Output Power | 5W / 1W |
| Modulation Type | Variable Reactance |
| Spurious Emission | ≥68dB |
| Frequency deviation | ±5KHz |
| Receiver Circuit | Double-Conversion Superheterodyne |
| Intermediate Frequencies | 1st: 21.7 MHz / 2nd: 450 kHz |
| Sensitivity | 0.22µV (12 dB SINAD) |
| Adjacent Channel Selectivity | 70 dB |
| Intermodulation response | 68 dB |
| Audio Output | 0.5W (8Ω 10% THD) |
Overview
TRANSMITTER
RECEIVER
