Haiyang VG – 12CF

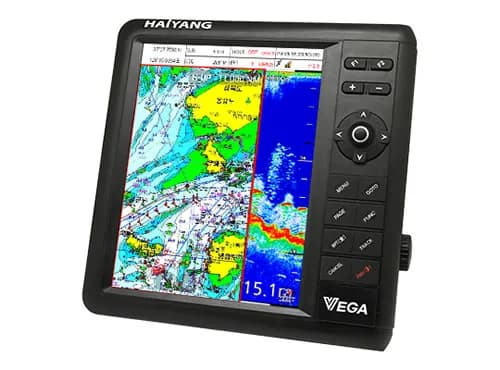

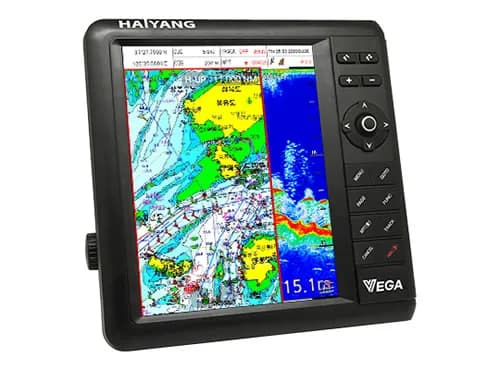

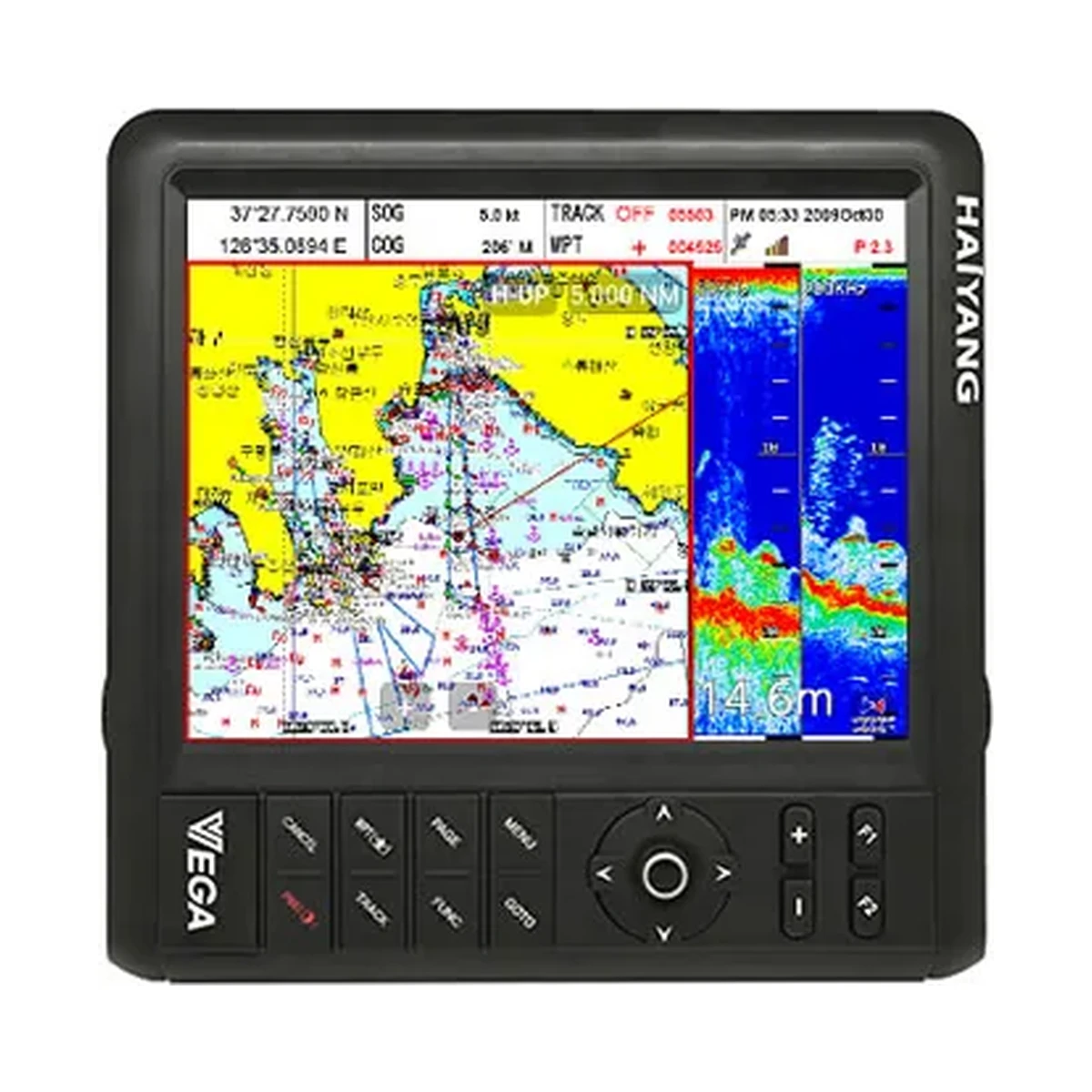

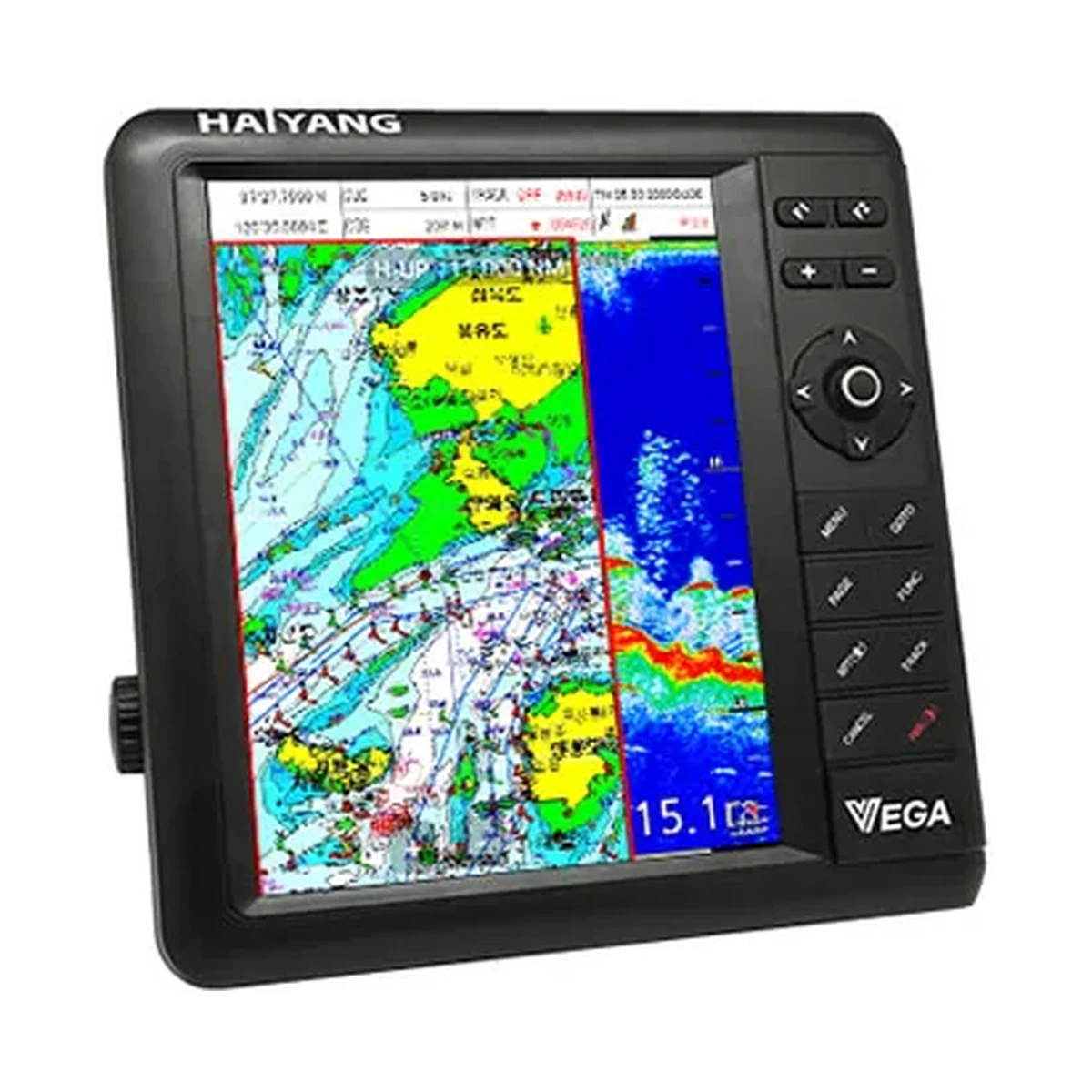

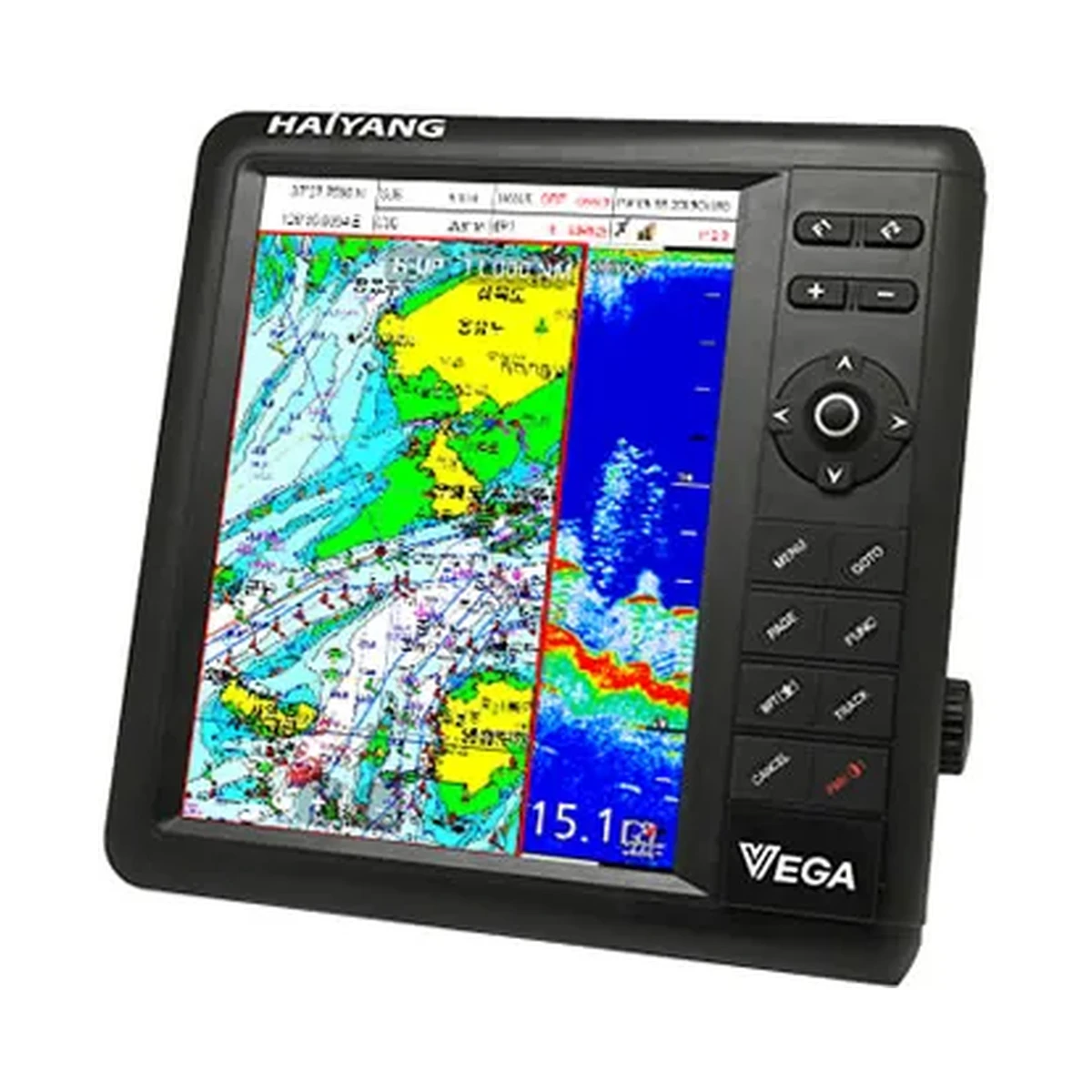

12.1 inch touch color Chart plotter/Fishfinder Android OS Full multi-touch Rotatable screen WPT 100,000 points Digital Fishfinder PDF Brochure
- Brand
- Haiyang
- Category
- Marine
- Availability
- Enquire for lead time
Downloads
Technical
Specifications
| Display Screen | 12.1 inch color touch LED backlight |
|---|---|
| Resolution | SVGA (800 x 600 pixels) |
| Power Supply | DC 12V ~ 36V (±10%) |
| Operation Temperature (Display Unit) | -15°C ~ +50°C |
| Operation Temperature (Antenna Unit) | -25°C ~ +70°C |
| Performance Standard | IMO Resolution MSC.112(73) |
| GNSS Receiver Capabilities | GPS L1 C/A code, GLONASS L10F, QZSS L1 C/A code, Galileo E1B/E1C/L1 |
| Number of Channel | 52 channel over |
| Horizontal Positioning Accuracy (Autonomous) | 2.5m (CEP 50%) |
| Sensitivity | Acquisition -148 dBm, Tracking -165 dBm, Reacquisition -162 dBm |
| Nav Update | 1Hz, 4Hz |
| Support | DGPS, SBAS (EGNOS, WAAS, MASA, GAGAN) |
| Display Method | Mercator projection |
| Display Mode | True motion/N/S/E/W up/Course up/Head up |
| Latitude Limits | Between 85°N to 85°S |
| Map Scale | 0.05NM to 1,500NM |
| Map Datum | WGS-84 |
| Waypoint | 100,000 points (16 colors and 16 icons selectable per point with name tag, 8 alphanumeric characters) |
| Track Point | 50,000 points (2 types) |
| Route | Max capacity 100 Routes (20 WPTs per Route, each with name tags of 8 alphanumeric characters) |
| Draw Point | 1,000 points |
| Area Name | 1,000 points |
| Chart Data | HY-MAP/C-MAP 4D/Navionics |
| Output Data | NMEA-0183 |
| Input Data | NMEA-0183 |
| Alarm | Arrival, Anchor, XTE, Interval timer, Userline |
| Fishfinder Display Mode | Normal (single/dual-frequency), bottom-lock, Bottom-zoom, A-scope |
| Fishfinder Frequency | 50 and 200 kHz |
| Fishfinder Output Power | 600W / 1.5kW |
| Range Speed (600W) | 2.5m ~ 600m |
| Range Speed (1.5kW) | 2.5m ~ 1,500m |
| Image Speed | Fixed 8 speeds (4/1, 2/1, 1, 1/2, 1/4, 1/8, 1/16, 1/32) and stop |
| Interference Rejection | 3 levels |
| Noise Rejection | 4 levels |
| Function | Gain (auto/manual), Range (auto/manual), Shift (auto/manual), White/Black line, Support speed sensor, Water temperature, Time machine, Contrast |
Overview
About this product
Pegasus(Android Smart APP) After user downloads “Pegasus APP” in Google play and connecting Vega through Bluetooth, it will provide more convenient operating and controlling Vega.
- Marks storing, loading, editing, looking on the map and combining are available
- Tracks storing, loading and looking on the map are available
- Alarming when new Vega S/W and map updated
- Remote controller supporting
- Digital user manual supporting
