Icom

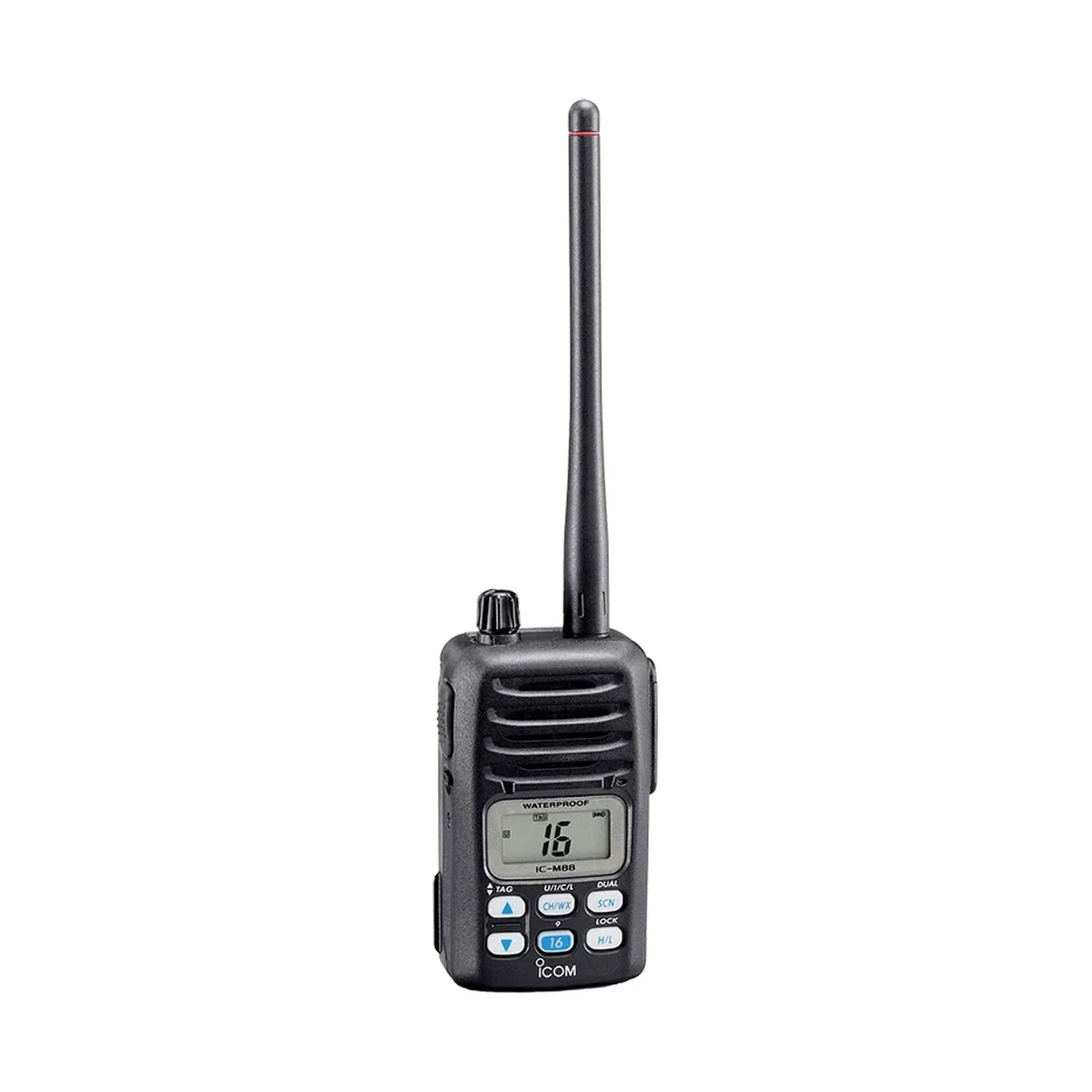

IC-M88 UL
Discontinued by the manufacturer. VHF Transceivers Key Features Additional features Selectable 5/3/1 W output power Auto WX scan and WX alert function Simple Up/Down switches for operating channel selection Instant access to Ch. 16 and Ch. 9 (or call channel) Simple add/delete TAG scanning…
- Brand
- Icom
- Category
- Marine
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Downloads
Technical
Specifications
| Frequency range (Tx) | 156.025–157.425 MHz |
|---|---|
| Frequency range (Rx) | 156.050–163.275 MHz |
| LMR Tx/Rx | 146–174 MHz |
| Dimensions (W×H×D, projections not included) | 62×97×39 mm; 2.44×3.82×1.54 in |
| Weight (approx.) | 280 g; 9.9 oz (With BP-227) |
| Current drain - Transmit (High) | 1.6 A typical |
| Current drain - Max. audio | 200 mA typical |
| Current drain - Power save | 20 mA typical |
| Sensitivity (at 12 dB SINAD) | 0.25 μV typical |
| Intermodulation rejection | 70 dB typical |
| Audio output power (10% distortion, 8 Ω load) | 350 mW typical |
| RF output power | 5/3/1 W |
Overview
About this product
Marine Radio for Hazardous Locations
5 W Output Power for Hazardous Locations
The IC-M88 UL version provides 5 W output power and can be used in hazardous locations, stipulated under Class I, Division 2 conditions of use approved by UL. Nonincendive: Class Ι, Division 2, Groups A, B, C, D T6 (≤85°C) when used with Icom BP-227UL battery pack. Approved accessories: Speaker-microphone, HM-168IS Ambient temperature: –20°C to +40°C ANSI/UL 121201
Questions
Frequently asked questions
What transmit power does the Icom IC-M88 UL offer?
The IC-M88 UL transmits at 5/3/1 W, selectable to suit the range you need and to conserve battery on shorter-range traffic.
Does the IC-M88 UL work outside the marine VHF band?
Yes. Alongside its marine VHF coverage (156.025-157.425 MHz Tx, 156.050-163.275 MHz Rx), the IC-M88 UL also covers 146-174 MHz for LMR (land mobile radio) transmit and receive.
How much does the Icom IC-M88 UL weigh?
With the BP-227 battery pack fitted, the IC-M88 UL weighs approximately 280 g (9.9 oz).
