Digital Yacht

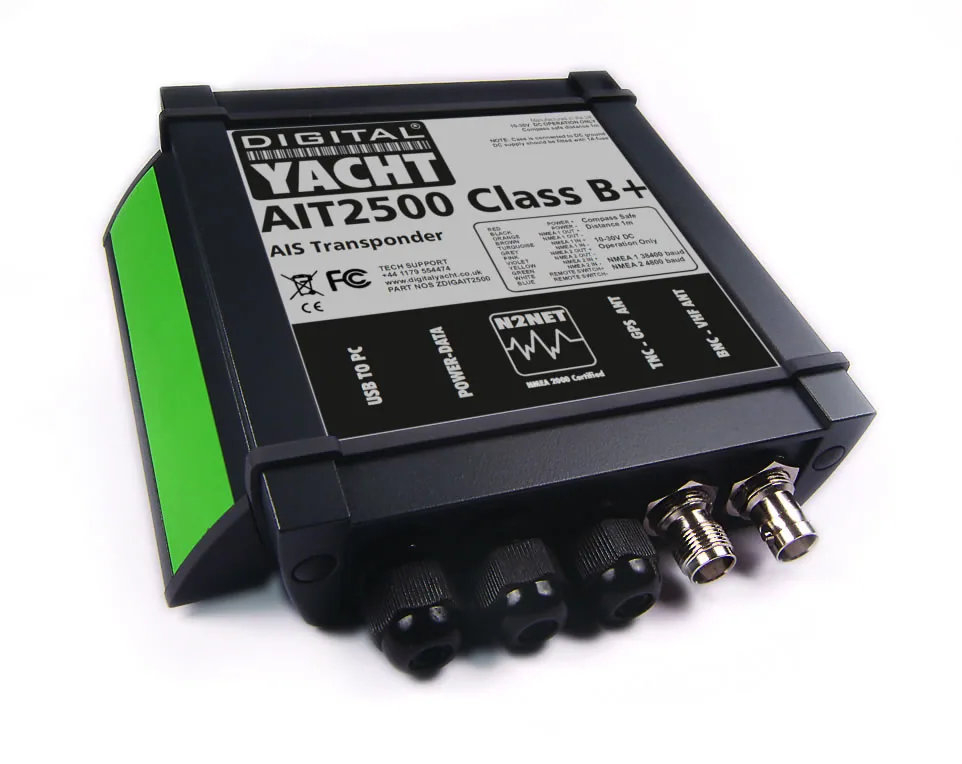

“The AIT2500 is a full function Class B+ SOTDMA AIS transponder with NMEA 0183, NMEA 2000 and USB data outputs. It is supplied with a GPS antenna.”
Technical
| Weight | 2000 g |
|---|---|
| Dimensions | 155 × 130 × 37 mm |
Overview
Digital Yacht have introduced a new range of Class B+ AIS transponders. Class B+, a new standard, utilises SOTDMA format transmissions which offer a 5W power output (2.5x more powerful than a regular Class B), a guaranteed time slot for transmission in busy traffic areas and faster update rates depending upon the speed of the vessel. It’s ideal for ocean sailors requiring the best possible performance and future proof satellite tracking applications, fast power boats and smaller non-mandated commercial vessels. It still inter-operates with existing Class B and Class A systems.
The AIT2500 is a full function SOTDMA AIS transponder with NMEA 0183, NMEA 2000 and USB data outputs. It is supplied with a GPS antenna and requires connection to a VHF antenna or suitable VHF-AIS antenna splitter.
The AIT2500 the option of an AIS SART alarm which is great for use with personal AIS MOB devices.
Class B+ is a new generation of AIS functionality based on SOTDMA (self organised TMDA) messaging rather than the simpler CSTDMA (carrier sense TDMA). It guarantees your AIS transmission will get a time slot, even in areas of very high traffic density. It also specifies a 5W transmission power (compared with 2W for Class B) and a transmission rate that increases as the vessel moves faster. With regular Class B protocol, the transmission rate is fixed at every 30 seconds when the vessel is moving. It is ideal for ocean sailors requiring the best possible performance and future proof satellite tracking applications, fast power boats and smaller non-mandated commercial vessels. Please click here if you want to learn more about Class B+
Related
AIB1000 – Self-contained AIS Transponder — ais transponders from Digital Yacht. Current all-in-one self-contained transponder unit. digitalyacht.co.uk/product/aib1000/

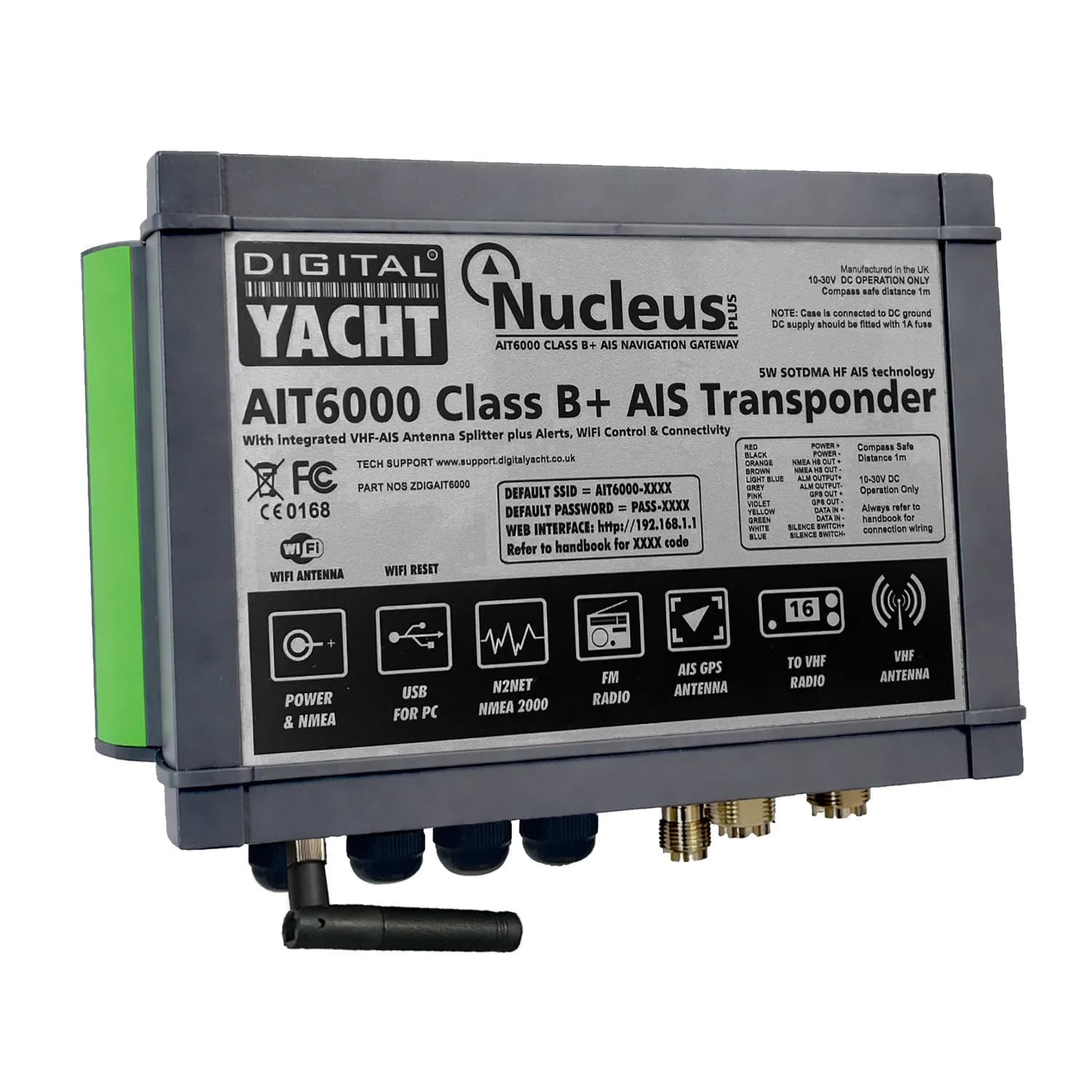

AIT6000 – AIS Transponder with VHF Splitter, Alarms, NMEA 2000 & Wi-Fi — ais transponders from Digital Yacht. Flagship Class B+ transponder with an integral VHF splitter.

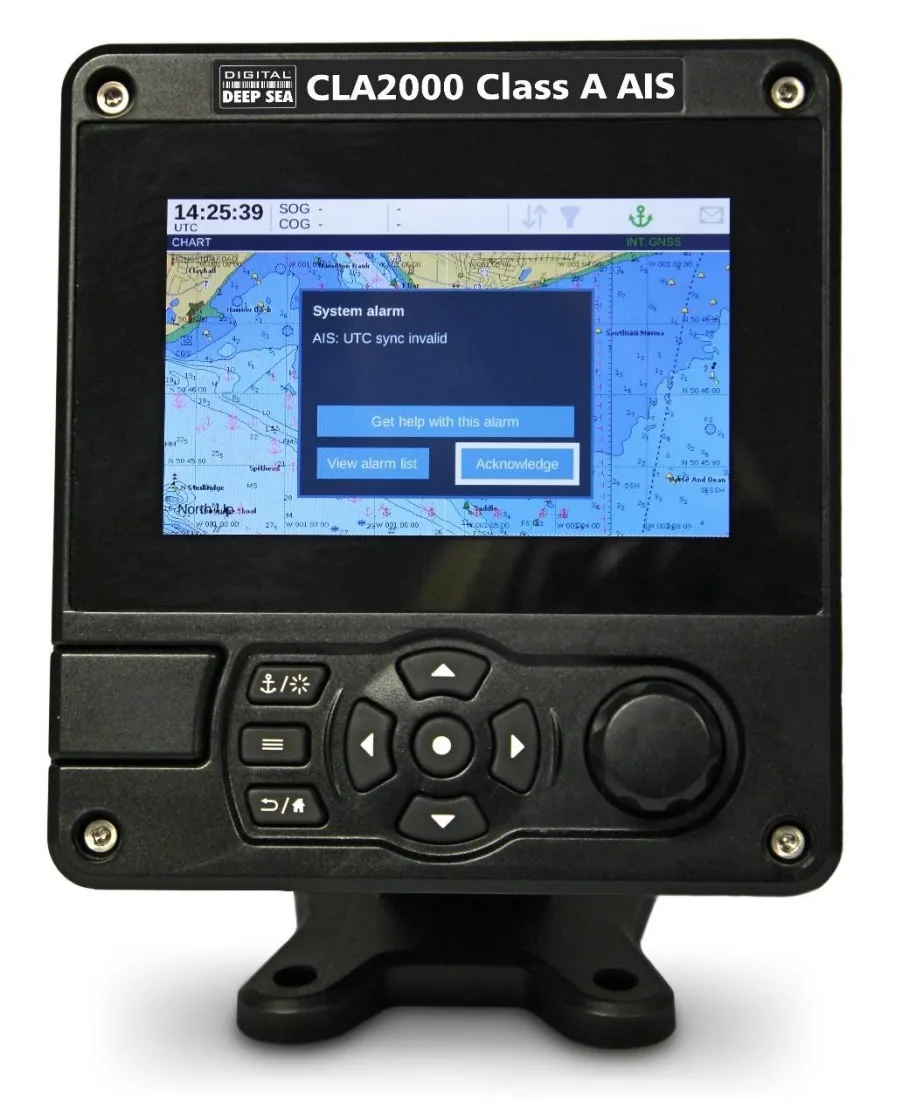

“CLA2000 is the ultimate SOLAS and inland waterway globally approved Class A AIS transponder with a full integrated 5” hi-res color display. “ Owner Manual

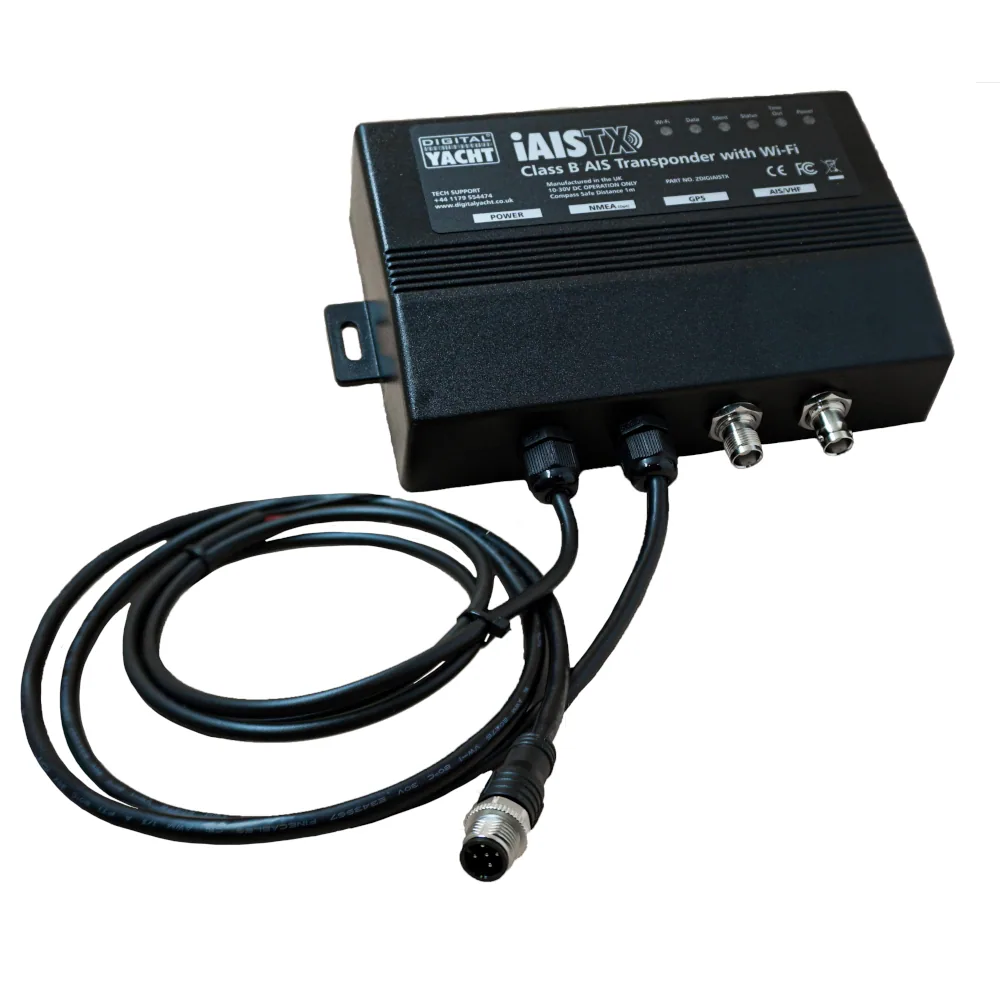

iAISTX Plus – AIS Transponder with Wi-Fi & NMEA 2000 — ais transponders from Digital Yacht. Current — adds NMEA 2000 output. digitalyacht.co.uk/product/iaistx-plus/
