Icom

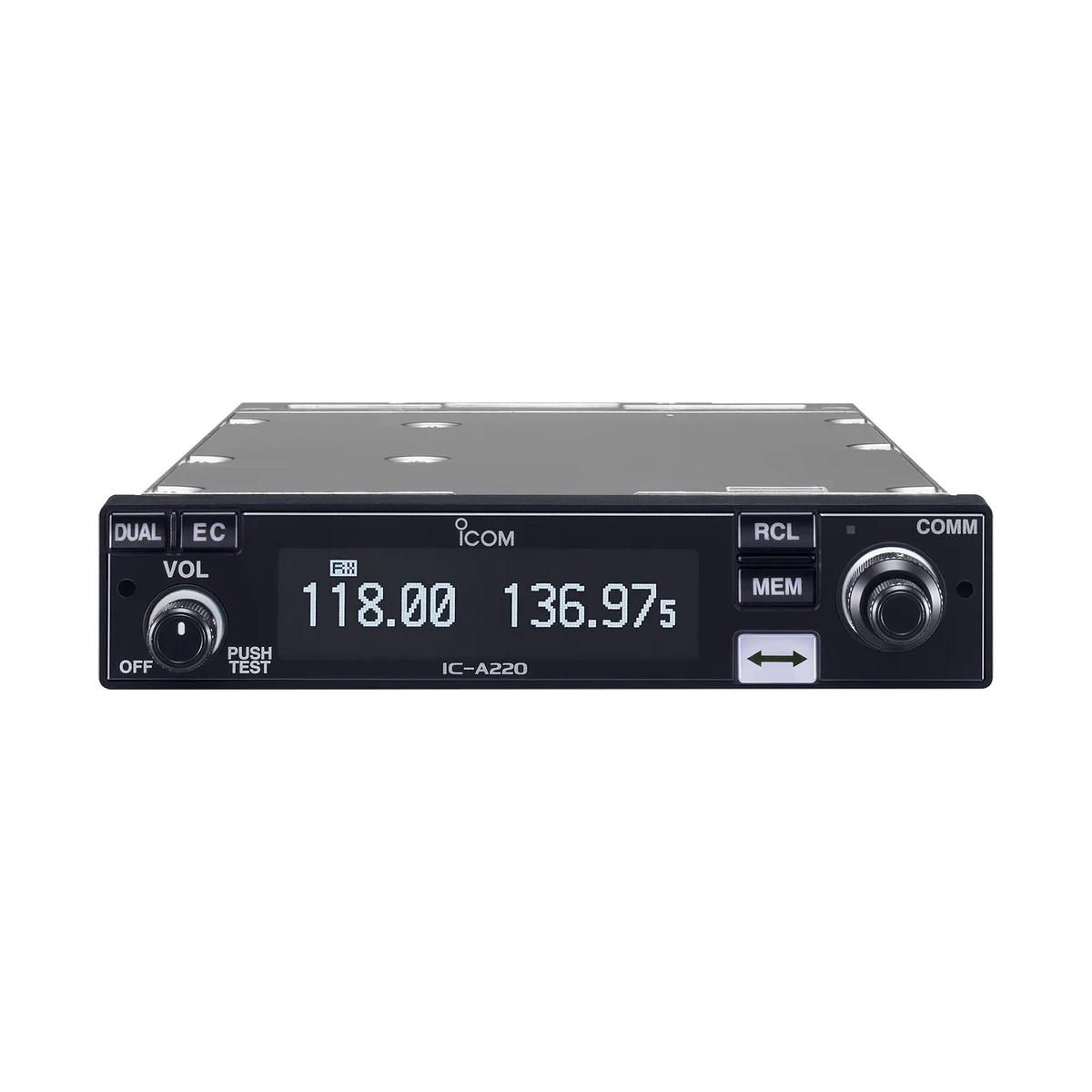

Panel-mount VHF air band transceiver with a bright OLED display.
Technical
| Frequency range (TX/RX, 8.33 kHz) | 118.000–136.992 MHz |
|---|---|
| Frequency range (TX/RX, 25 kHz) | 118.000–136.975 MHz |
| RX Weather channel | 161.650–163.275 MHz |
| Frequency spacing | 8.33 kHz / 25 kHz |
| Mode | AM (6K00A3E, 5K60A3E) |
| Frequency stability | ±5 ppm |
| Operating temperature | –20˚C to +55˚C |
| Antenna impedance | 50 Ω |
| Memory channels | 20 regular, 50 group, 10 GPS, 20 history, 10 weather |
| Power supply | 13.8 V/27.5 V DC (Negative ground) |
| Dimensions | 160 × 34 × 271 mm |
| Weight | 1.0 kg |
| Output power | 8 W (Carrier power) |
| Spurious emission | –60 dBc |
| Modulation limiting | 70% (Maximum 98%) |
| Microphone impedance | 600Ω |
| Intermediate frequencies | 38.85 MHz/450 kHz (1st/2nd) |
| Sensitivity (AM, 6 dB S/N) | Less than 2μV |
| Sensitivity (FM, 12 dB SINAD) | Less than 1.4μV |
| Selectivity (25 kHz) | ±3 kHz/±22 kHz (6 dB/60 dB) |
| Selectivity (8.33 kHz) | ±2.778 kHz/±7.37 kHz (6 dB/60 dB) |
| Spurious response | More than 74 dBμ |
| Audio output (External SP) | 5 W with 4 Ω load |
| Audio output (Headphone) | 60 mW with 500 Ω load |
Overview
The Icom IC-A220 is a panel-mount VHF air band mobile transceiver featuring a high-contrast OLED display with a wide viewing angle and illuminated control switches. It supports both 8.33 kHz and 25 kHz channel spacing, GPS-linked airport frequency memory, auto/manual squelch, dualwatch and priority watch functions, and one-touch access to the 121.5 MHz emergency frequency, along with a voice-activated intercom for pilot-to-copilot communication. Built to MIL-810G environmental standards, it has a compact 33mm panel height, operates on 13.8V or 27.5V aircraft power, and supports remote control and external dimmer integration.
