Icom

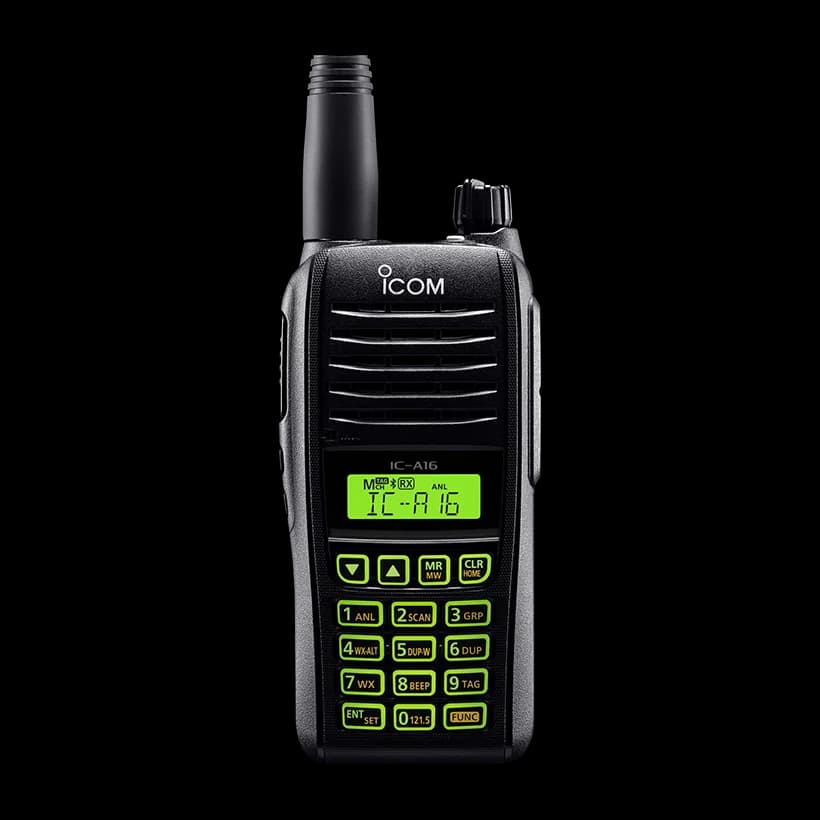

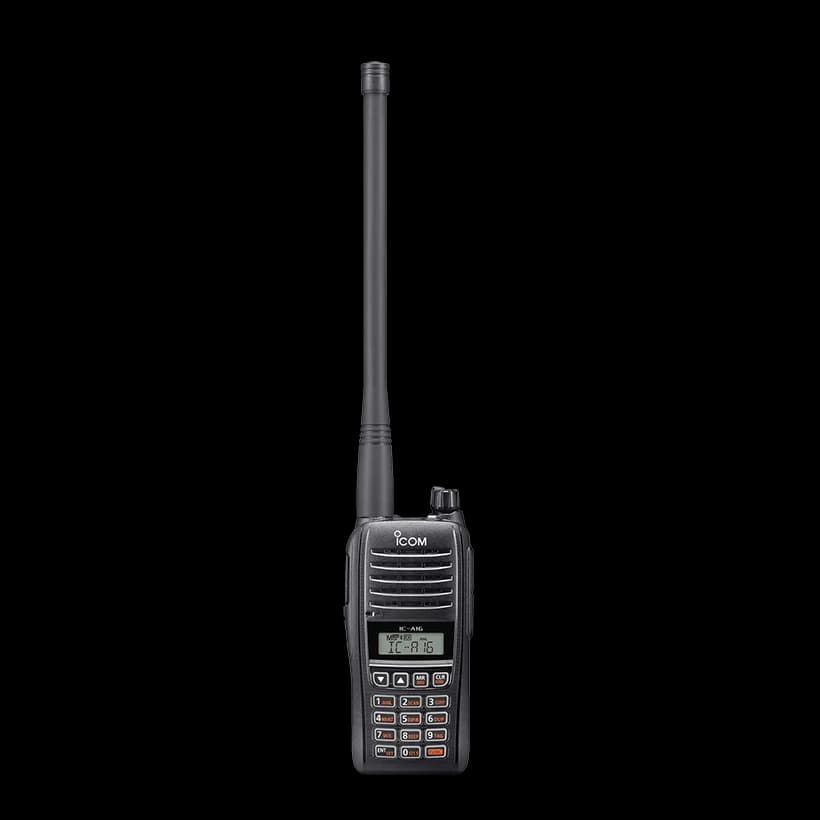

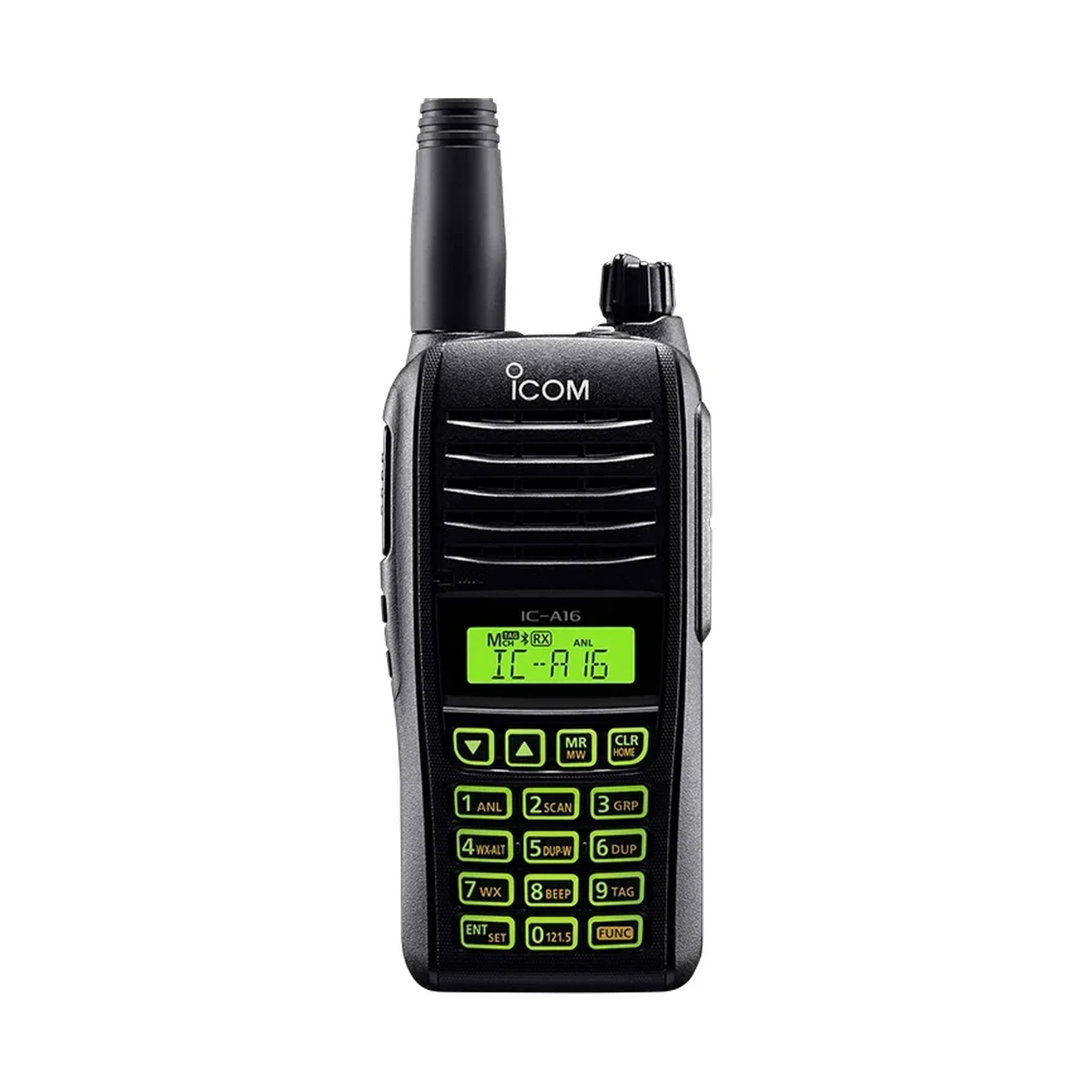

VHF Air Band Transceivers Key Features 8.33 kHz and 25 kHz channel spacing 1500 mW loud audio provides clear communications 6 W (PEP) /1.8 W (carrier) RF output power Built-in Bluetooth® for Hands-Free Operation* Large capacity battery pack provides 17 hours*…
Technical
| Frequency range TX | 118.000–136.99166 MHz |
|---|---|
| Frequency range RX | 108.000–136.99166 MHz |
| Frequency range RX (Weather) | 161.650–163.275 MHz |
| Number of memory channels | 200 channels |
| Channel spacing | 8.33 kHz/25 kHz |
| Type of emission | 6K00A3E, 5K60A3E, 16K0G3E (Weather) |
| Power supply requirement | 7.2 V DC |
| Current drain (TX High) | 1.8 A |
| Current drain (RX) Stand-by | 65 mA typical |
| Current drain (RX) Max. audio | 650 mA |
| Antenna impedance | 50 Ω (BNC type antenna connector) |
| Operating temperature range | –10˚C to +60˚C, 14˚F to +140˚F |
| Dimensions (W×H×D) | 52.2 × 111.8 × 34.1 mm, 2.1 × 4.4 × 1.3 in (with BP-280) |
| Weight (approximate) | 257 g, 9.1 oz (with BP-280) |
| Output power (at 7.2 V DC) | 6.0 W (PEP), 1.8 W (carrier) |
| Audio harmonic distortion | Less than 10% (at 60% modulation) |
| Spurious emissions | More than 46 dB |
| Frequency stability | ±0.4 kHz |
| Intermediate frequencies | 46.35 MHz (1st), 450 kHz (2nd) |
| Sensitivity COM | Less than 0 dBμ |
| Sensitivity NAV | Less than 3 dBμ |
| Sensitivity Weather | Less than –8 dBμ |
| Squelch sensitivity (Threshold) | Less than 0 dBμ |
| Squelch sensitivity Weather | Less than –5 dBμ |
| Spurious response | More than 60 dB; Weather: More than 30 dB |
| Hum and noise | More than 35 dB (at 30% modulation) |
| Audio output power (INT SP) | 1500 mW typical |
| Audio output power (EXT SP) | More than 350 mW |
| External speaker connector | 3 conductor 3.5 (d) mm |
