Icom

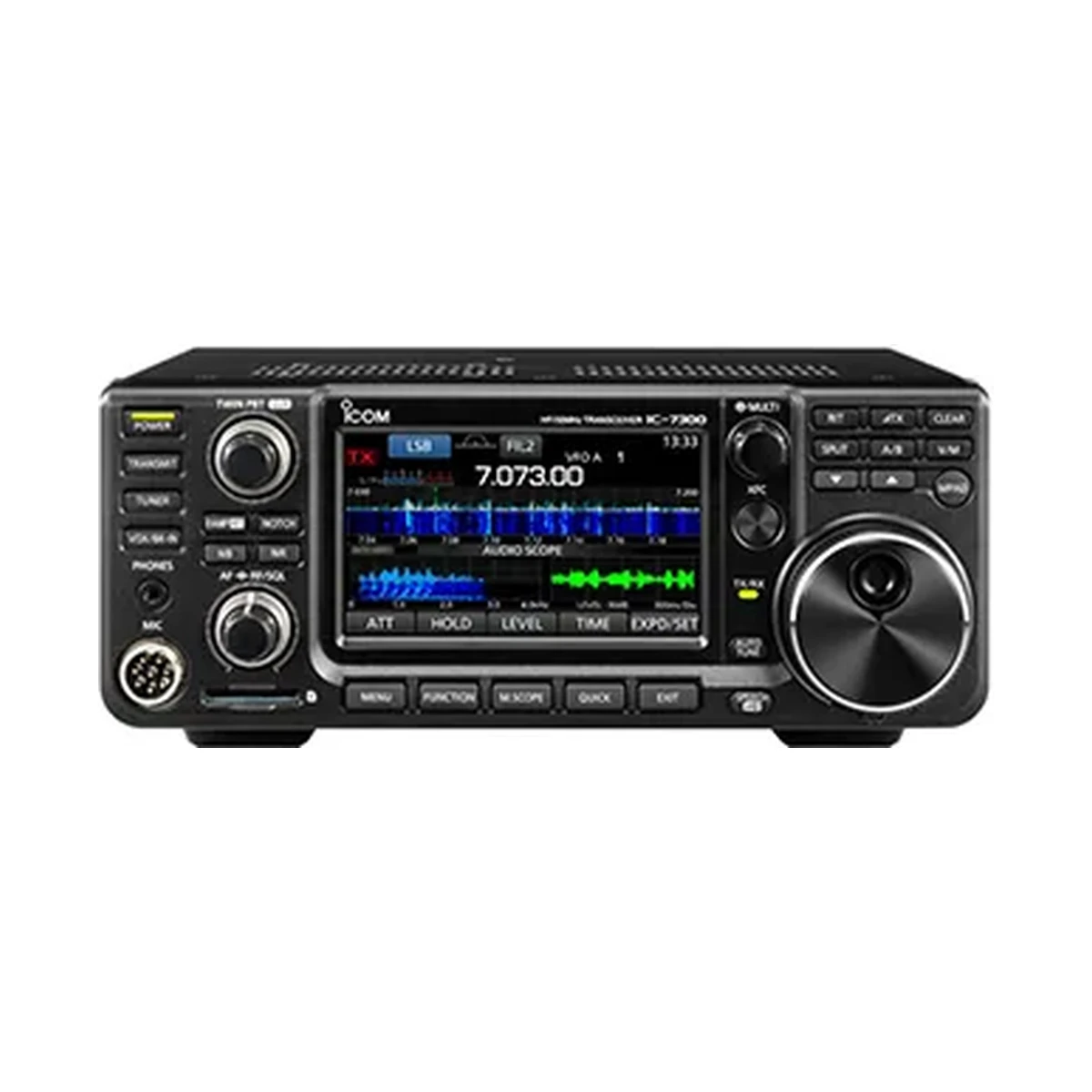

IC-7300
Discontinued by the manufacturer. HF Transceiver Key Features Class Leading Real-Time Spectrum Scope High-Resolution Waterfall Function Audio Scope Function RF Direct Sampling System New "IP+" Function Class Leading RMDR and Phase Noise Characteristics 15 Discrete Band-Pass Filters Built-In…
- Brand
- Icom
- Category
- Amateur Radio
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Downloads
Technical
Specifications
| Frequency coverage (Rx) | 0.030–74.800MHz (Guaranteed: 0.500–29.999, 50.000–54.000MHz) |
|---|---|
| Frequency coverage (Tx) | 1.800–1.999MHz, 3.500–3.999MHz, 5.255–5.405MHz, 7.000–7.300MHz, 10.100–10.150MHz, 14.000–14.350MHz, 18.068–18.168MHz, 21.000–21.450MHz, 24.890–24.990MHz, 28.000–29.700MHz, 50.000–54.000MHz |
| Mode | SSB, CW, RTTY, AM, FM |
| Number of channels | 101 (99 regular, 2 scan edges) |
| Antenna connector | SO-239 (50Ω) |
| Power supply requirement | 13.8V DC ±15% |
| Power consumption (Tx) | 21A (at 100W output power) |
| Power consumption (Rx) | 0.9A typical (Standby), 1.25A (Maximum audio) |
| Operating temperature range | –10˚C to +60˚C |
| Frequency stability | Less than ±0.5ppm |
| Frequency resolution | 1Hz |
| Dimensions (W×H×D) | 240×94×238mm |
| Weight | 4.2kg |
| Output power (SSB/CW/FM/RTTY) | 2–100W |
| Output power (AM) | 1–25W |
| Modulation system (SSB) | Digital P.S.N. modulation |
| Modulation system (AM) | Digital Low power modulation |
| Modulation system (FM) | Digital Reactance modulation |
| Spurious emissions (HF bands) | Less than –50dB |
| Spurious emissions (50MHz band) | Less than –63dB |
| Carrier suppression | More than 50dB |
| Unwanted sideband | More than 50dB |
| Microphone impedance | 600Ω |
| Receiver system | Direct Sampling Superheterodyne |
| Intermediate frequency | 36kHz |
| Sensitivity (SSB/CW, 1.8–29.999MHz, Preamp 1 ON) | 0.16μV |
| Sensitivity (SSB/CW, 50MHz, Preamp 2 ON) | 0.13μV |
| Sensitivity (AM, 0.5–1.8MHz, Preamp 1 ON) | 12.6μV |
| Sensitivity (AM, 1.8–29.999MHz, Preamp 1 ON) | 2.0μV |
| Sensitivity (AM, 50MHz, Preamp 2 ON) | 1.0μV |
| Sensitivity (FM, 28.0–29.7MHz, Preamp 1 ON) | 0.5μV |
| Sensitivity (FM, 50MHz, Preamp 2 ON) | 0.25μV |
| Squelch sensitivity (SSB) | Less than 5.6μV |
| Squelch sensitivity (FM) | Less than 0.3μV |
| Selectivity (SSB) | More than 2.4kHz / –6dB; Less than 3.4kHz / –40dB |
| Selectivity (CW) | More than 500Hz / –6dB; Less than 700Hz / –40dB |
| Selectivity (RTTY) | More than 500Hz / –6dB; Less than 800Hz / –40dB |
| Selectivity (AM) | More than 6.0kHz / –6dB; Less than 10.0kHz / –40dB |
| Selectivity (FM) | More than 12.0kHz / –6dB; Less than 22kHz / –40dB |
| Spurious and image rejection (HF) | More than 70dB |
| Spurious and image rejection (50MHz) | More than 70dB |
| Audio output power | More than 2.5W |
| Tuner frequency range | 1.9–50MHz bands |
| Tuner matching impedance range | 16.7Ω–150Ω unbalanced (VSWR 1:3) |
| Tuner tuning accuracy | VSWR 1:1.5 or less |
| Tuner tuning time | 2–3 seconds (Maximum 15 seconds) |
Overview
About this product
IC-7300 – The Innovative HF Transceiver
with High Performance Real-Time Spectrum Scope.
